Electric cartridge heaters with mechanical connection: custom manufacturing by Mit.D.
Electric cartridge heaters with mechanical connection are the ideal solution for industrial applications requiring secure fastening, precise positioning, and high resistance to mechanical stress. Thanks to their threaded connection, they ensure stable installation while simplifying assembly and maintenance operations.
Mit.D. designs and manufactures custom electric cartridge heaters with mechanical connection at its production facility in Vanzaghello (Milan, Italy), providing tailor-made solutions to meet the specific requirements of every industrial application.
Cartridge Heaters with Standard Thread and Reverse Thread
Our cartridge heaters are available with two different mechanical connection configurations.
Standard Thread Cartridge Heaters
In the standard thread version, the threaded connection is positioned on the heating body side of the cartridge heater. This configuration is ideal when fastening is required directly in the heating area.

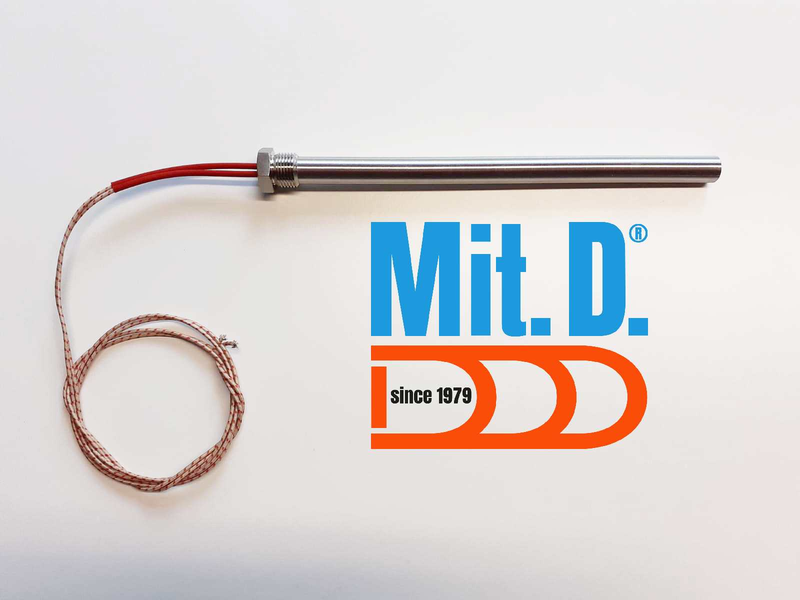

Reverse Thread Cartridge Heaters
Reverse thread cartridge heaters feature the threaded connection on the lead wire side. This design is particularly suitable for machines or molds requiring rear fastening due to their construction.
Both versions can be fully customized in terms of diameter, length, power rating, voltage, and thread specifications.
Mit.D. Mechanical Connection Cartridge Heater Models
Every industrial process has different heat distribution requirements. For this reason, Mit.D. manufactures several types of mechanically connected cartridge heaters, each designed to provide optimal temperature control.
XLN – Standard Cartridge Heater
The XLN model is the traditional single-coil cartridge heater.
Heat is distributed evenly along the entire heated length, ensuring uniform and consistent temperature distribution.
This solution is ideal for applications requiring homogeneous heating.
XLS – Multi-Zone Cartridge Heater
XLS cartridge heaters are available with 2 or 3 independent heating zones.
Each zone consists of a heating coil with the same length and power rating as the others and features its own independent electrical supply.
This configuration allows each heating zone to be controlled separately, providing accurate heat distribution inside molds, dies, or industrial machinery.
XLD – Multi-Zone Cartridge Heater with Different Power Outputs
The XLD model is also available with 2 or 3 independent heating zones, but each zone is designed with a different power output.
Although all heating coils have the same length, each delivers a different watt density, allowing heat losses to be compensated and higher temperatures to be concentrated exactly where required.
Each zone has its own independent electrical connection for extremely precise temperature management.
XLZ – Single-Coil Differential Cartridge Heater
The XLZ cartridge heater represents an advanced heating solution.
It consists of a single heating coil internally divided into 2 or 3 zones of equal length but with different power outputs.
This design provides optimized heat distribution along the heater while maintaining a single heating element, making it particularly suitable for applications requiring highly controlled thermal profiles.
In-House Manufacturing and Customization
All Mit.D. electric cartridge heaters with mechanical connection are designed and manufactured in our Vanzaghello (Italy) production facility using high-quality materials and strict quality control procedures throughout every stage of production.
Each heater can be customized with:
- diameter and length;
- power rating and voltage;
- thread type and pitch;
- integrated thermocouple;
- lead wire protection with silicone sleeve, stainless steel braided sleeve, or corrugated metal conduit;
- special electrical connections and accessories.
Why Choose Mit.D. Electric Cartridge Heaters?
Our extensive experience in designing custom electric cartridge heaters, combined with complete in-house manufacturing, enables us to deliver reliable products, outstanding performance, and qualified technical support to identify the best heating solution for every application.
Download our Cartridge Heater Technical Catalogue, available free of charge from the homepage of our website.
